John Crane Type 609 Replacement

  • Perfect replacement of John crane Type 609 mechanical seal
  • Structure Description: Equivalent to John Crane metal bellow seal type 609, Welded metal bellows design
  • 609 is a high-temperature (to 425°C/800°F) rotating seal head assembly that incorporates all of the rugged features of the THIJO SDKJFAJF ype 604, but is intended for those demanding applications where a dependable, high-strength, rotating seal is preferred. A narrow cross-section design enables the SS609 to fit in the most popular pumps without expensive and time-consuming seal chamber modifications. This makes it the ideal seal for heat transfer, hydrocarbon and other applications that commonly use pumps with limited seal chamber clearances. Typical applications include hot hydrocarbons, aqueous solutions, aromatic fractionation products, crude oil fractionation products and heat transfer fluids.

Get Free Quote

Share to

Operating Limits:

  • Temperature: -20---400℃
  • Speed: 20m/s
  • Pressure: 25bar
  • Standard size: 1.0''-4.0''

Material:

  • Seal ring: Car,Sic,Ssic,TC
  • Secondary seal: Carbon graphite
  • Spring and Metal parts: 304,316,AM350,HAST.C,Inconel 718,Titanium



John Crane Type 609 Replacement

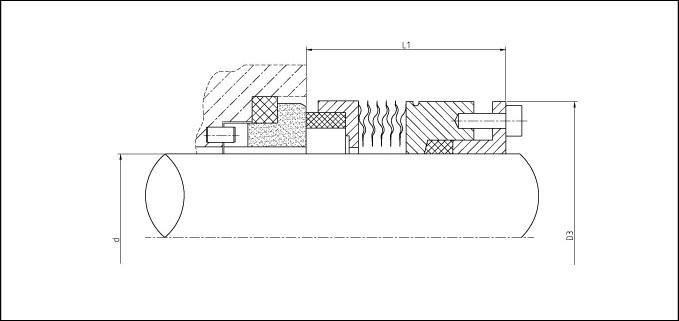

Dimensions(Inches)

Size d D3 L1
1.000 25.40 41.28 38.95
1.125 28.58 44.45 39.87
1.250 31.75 47.63 40.66
1.375 34.93 50.80 40.66
1.500 38.10 53.98 40.66
1.625 41.28 57.15 40.66
1.750 44.45 60.33 41.48
1.875 47.63 63.50 41.48
2.000 50.80 66.68 42.26
2.125 53.98 69.85 42.26
2.250 57.15 73.03 43.86
2.375 60.33 76.20 43.86
2.500 63.50 82.55 44.65
2.625 66.68 85.73 45.44
2.750 69.85 88.90 45.44
2.875 73.03 93.65 47.83
3.000 76.20 96.82 47.83
3.125 79.38 101.60 47.83
3.250 82.55 104.78 47.83
3.375 85.73 107.95 47.83
3.500 88.90 111.13 47.83
3.625 92.08 114.30 47.83
3.750 95.25 117.48 47.83
3.875 98.43 120.65 47.83
4.000 101.60 123.83 47.83

Application

--------------------







Production Process Steps

-----------------------------------------------









Guess What You Like

---------------------------------------

CK267
CK267
DJB 90-50
DJB 90-50
Grundfos
Grundfos
MFL85N
MFL85N
MG1
MG1
SAF-110
SAF-110
SE2-77
SE2-77
SE2-AP-40
SE2-AP-40

Company Files

----------------------------





Zigong Ke Yu Seal Science and Technology Co.,LTD located in hightech industry of zigong city in sichuan province. We are large manufacturer and exporter of high pressure,high temperature, high speed mechanical seal. Our products widely used in KSB pumps, Grundfos pumps, Flowserve pumps, etc. And our mechanical seal can exactly replace original mechanical seal in sharpe agitator, ekato agitator, lightnin agitator, sardik agitator, mut agitator, mixpro agitator etc. We design and manufacture mechanical seal up to 60 bar, 3000rpm, 300C°in different material of constructions like ss316/316L,ss304, Sillicon Carbide, Tungsten Carbide, Carbon, Viton, NBR, EPDM ,PTFE, etc. From pumps to reactor for various application. We can also provide ODM and OEM precision machined parts according to your drawings or design requirements. For exmple,customized shaft, shaft sleeve, as well as a variety of high-precision, high request products. Materials that can be produced include stainless steel, titanium and any other metal material of different grade.



We have 8 inspection at least from raw materials to finished products, before pack it, we will do pressure test to strive for the absolute excellet quality. After that, It will be delivered to end user.



With greater strategic focus than ever berfore, a strong and experienced technology team and clean plan for short and long-term growth, we are building on the strength of our history to delivery a higher level of customer services,innovation and value.









Our Team

-------------------------



Production Department

We strictly inspect every process in the workshop to ensure the qualified rate and reliability of products.





Office Department

The sound office clerk management system and conscientious employees ensure company run smoothly.





Sales Department

As the front line of the company, the sales department has been at the forefront.





After Sale Department

Perfect after-sales service ensures customer satisfaction.
